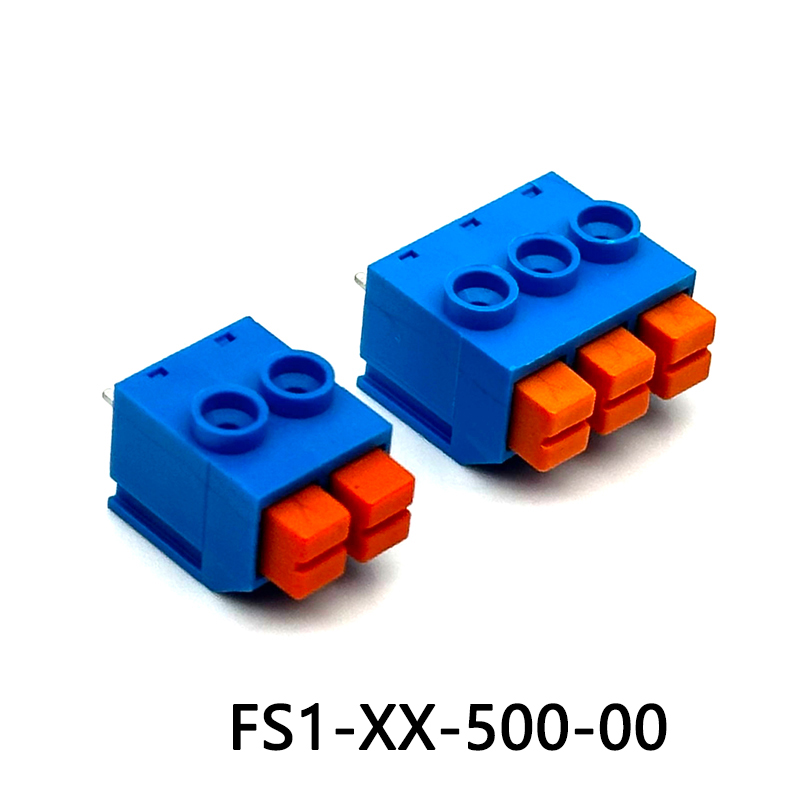

FS1-XX-500-00 PCB Spring Terminal blocks
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
Other Data | |
Pitch/Poles [mm]/[P] | 500/1~30 |
Stripping Length [mm] | 10~11 |
Operating temperature [℃] | -40~+105 |
Soldering temperature | 250℃/5S |
Pin dimensions [mm] | 0.8*0.6 |
UL/CUL | |
Rate Voltage [V] | 300 |
Rated Current [A] | 10 |
Wire Range [AWG] | 22-18 |
Dielectric Voltage-Withstand | 1.6KV |
Material | |
Insulation Material | PA66 |
Flame relardant rating | UL94V-0 |
