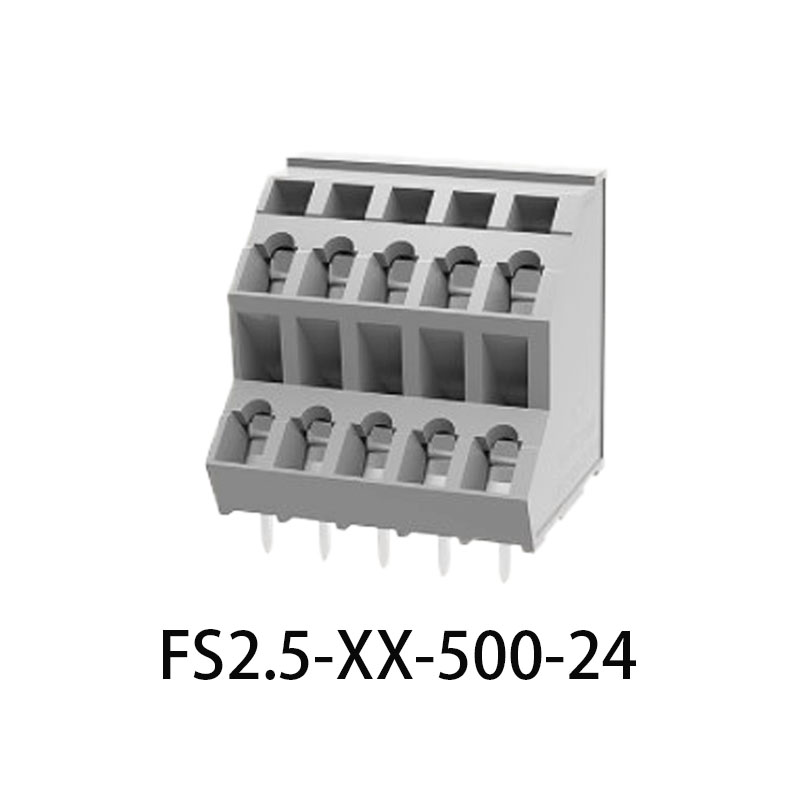

PCB spring terminal block Rated current: 10A Rated voltage: 300V Wire range: 28-12AWG Pitch: 5.0mm/5.08mm Mounting: Wave soldering
2*1P
2*2P
2*3P

2*4P
2*5P
2*6P

2*7P
2*8P
2*9P

2*10P
2*11P
2*12P

Products weight: Package quantity:

UL/CUL
UL/CUL(Technical Data)
(Use Group)	B	C	D
(Rated Voltage) [V]	300		300
(Rated Current) [A]	15		10
(Wire Range)
(solid/Standed) [AWG]
(Withstanding Voltage)	1600V/1Min
IEC
(Technical Data)
(Overvoltage Category)	\|\|\|	\|\|\|	\|\|
(Contamination Class)	3	2	2
(Rated Voltage) [V]	250	400	630
(Rated Current) [A]	17	17	17
(Impulse wiithstand voltagea) [KV]		4	4
(Conductor cross section)
(Solid/flexible) [mm²]
(Material)
(Insulation Material)	PA66
(Imflammability)	UL94V-0
(Contactor Material)	(Copper alloy)
(Contactive Coating)	(Tin Plated)
(Other Data)
(Pitch) [mm]	5
(Poles) [P]
(Stripping Length) [mm]
(Screw)
(Torque Max) [N.m]
(Operating temperatur) [℃]	-40~+105
(Pin Dimensions) [mm]	4.4
(PCB Hole Diameter) [mm]	1.2
