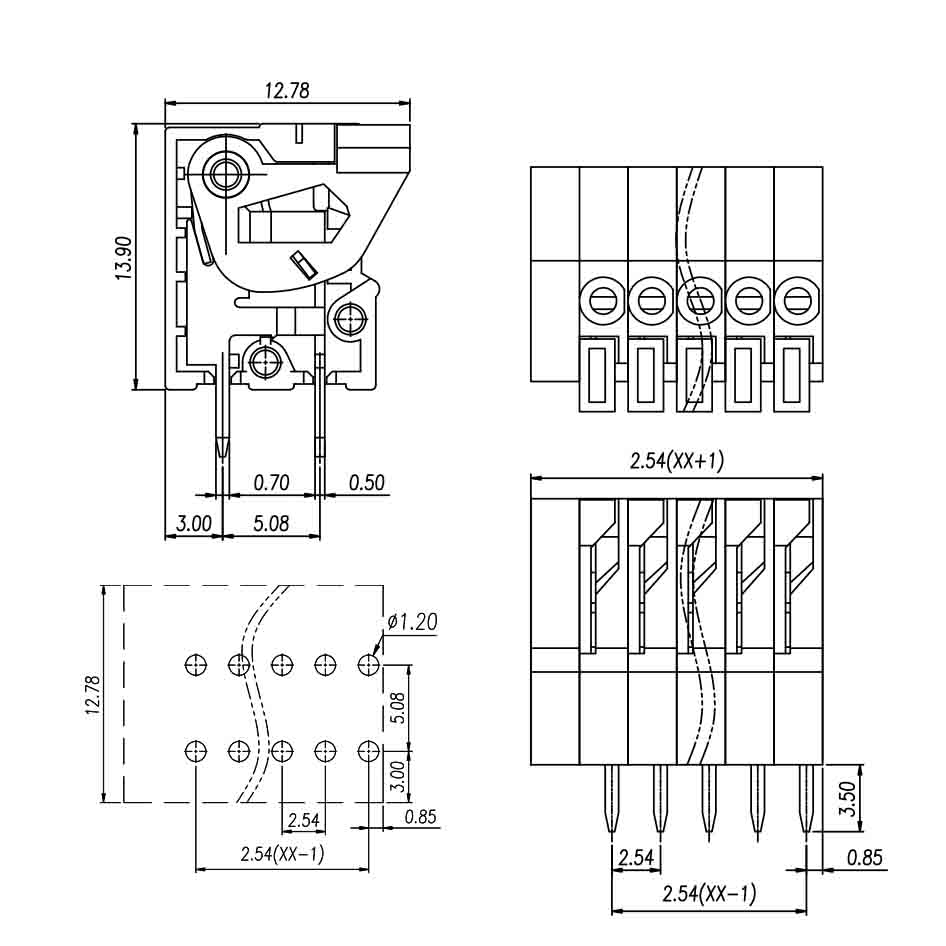

PCB spring terminal block Rated current: 4 A Rated voltage: 150 V Wire range: 26-18 AWG Pitch: 2.54 mm Mounting: Wave soldering
Poles

1
2
3
4
5
6

7
8
9
10
11
12

13
14
15
16
17
18

19
20
21
22
23
24

Products weight: Package quantity:

UL/CUL
Use Group	B	C	D
Use Group	150	-	250
Rated Current [A]	4	-	-
Wire Range [AWG]	26~18
Dielectric Voltage-Withstand	1.3KV

IEC
Overvoltage Category	III	III	II
Contamination Class	3	2	2
Rated Voltage [V]	63	160	320
Rated Current [A]	6	6	6
e withstand voltage [KV]	2.5	2.5	2.5
Conductor cross section [mm²]	0.2~0.5

Material
Insulation Material	PA66
Flame relardant rating	UL94-V0
Conductor Material	Copper alloy
Plating of conductor surface	Sn plated

Other Data
Pitch/Poles [mm]/[P]	2.54/1~30
Stripping Length [mm]	11
Screw/Torque(Max)[N.m]	/
Operating temperature [℃]	-40~+105
Soldering temperature	250℃/5S
Pin dimensions [mm]	0.7*0.5
PCB Hole Diameter [mm]	∅1.2
