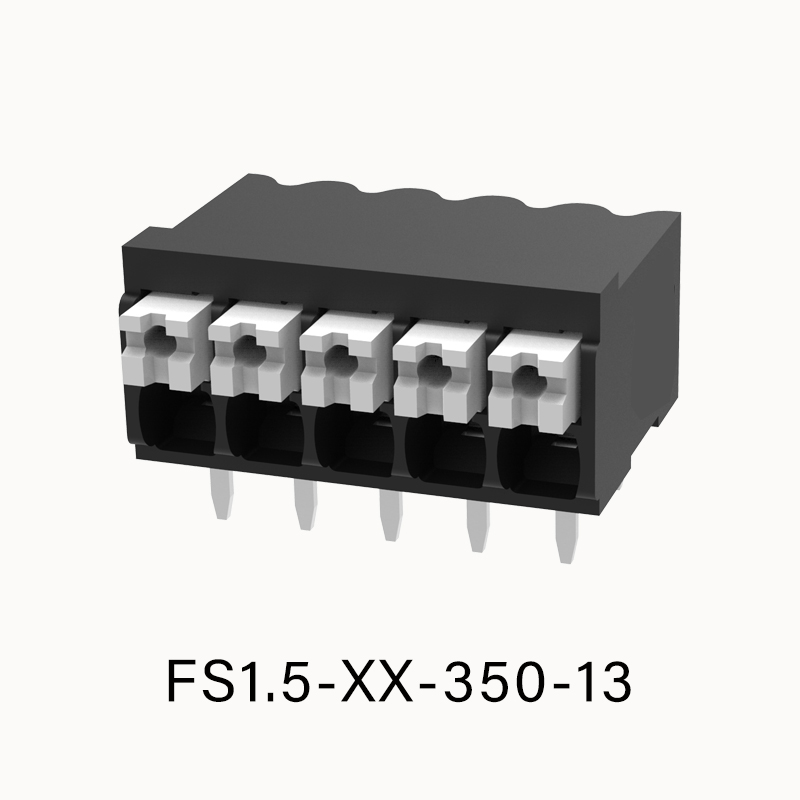

FS1.5-XX-350-13 spring terminal block
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail：fst@fastgd.cn
| 技术数据-UL/CUL | ||||
| 等级 Use Group | B | C | D | |
| 额定电压 Rate Voltage [V] | 300 | - | 300 | |
| 额定电流 Rated Current [A] | 10 | - | 10 | |
| 接线范围 Wire Range [AWG] | 24~16 | |||
| 耐电压 Dielectric Voltage-Withstand | 1.6KV | |||
| 技术参数-IEC | ||||
| 过电压类别 Overvoltage Category | III | III | II | |
| 污染等级 Contamination Class | 3 | 2 | 2 | |
| 额定电压 Rated Voltage [V] | 160 | 160 | 320 | |
| 额定电流 Rated Current [A] | 17.5 | 17.5 | 17.5 | |
| 额定冲击电压 Impulse withstand voltage [KV] | 2.5 | 2.5 | 2.5 | |
| 导线截面积[硬/柔] Conductor cross section [mm²] | 0.2~1.5 | |||
| 材料 Material | ||||
| 绝缘材料 Insulation Material | LCP | |||
| 阻燃等级 Flame relardant rating | UL94V-0 | |||
| 导体材料 Conductor Material | Copper alloy | |||
| 导体表面镀层 Plating of conductor surface | Sn plated | |||
| 一般参数 Other Data | ||||
| 间距/极数 Pitch/Poles [mm]/[P] | 3.5，3.81/2~24 | |||
| 剥线长度 Stripping Length [mm] | 7~8 | |||
| 螺丝/扭矩 Screw/Torque(Max)[N.m] | / | |||
| 工作温度 Operating temperature [℃] | -40~+130 | |||
| 焊锡温度 Soldering temperature | 285℃/10S | |||
| 引针尺寸 Pin dimensions [mm] | 0.8*0.4 | |||
| PCB板孔径 PCB Hole Diameter [mm] | ∅1.2 | |||
