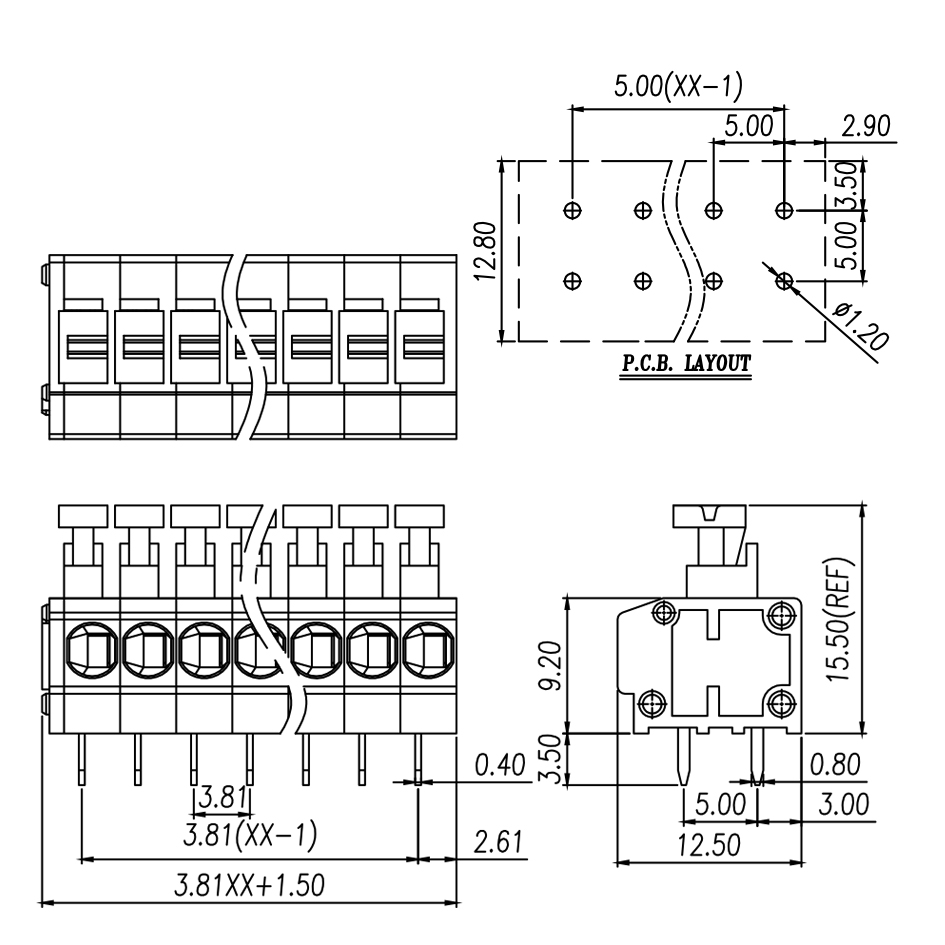

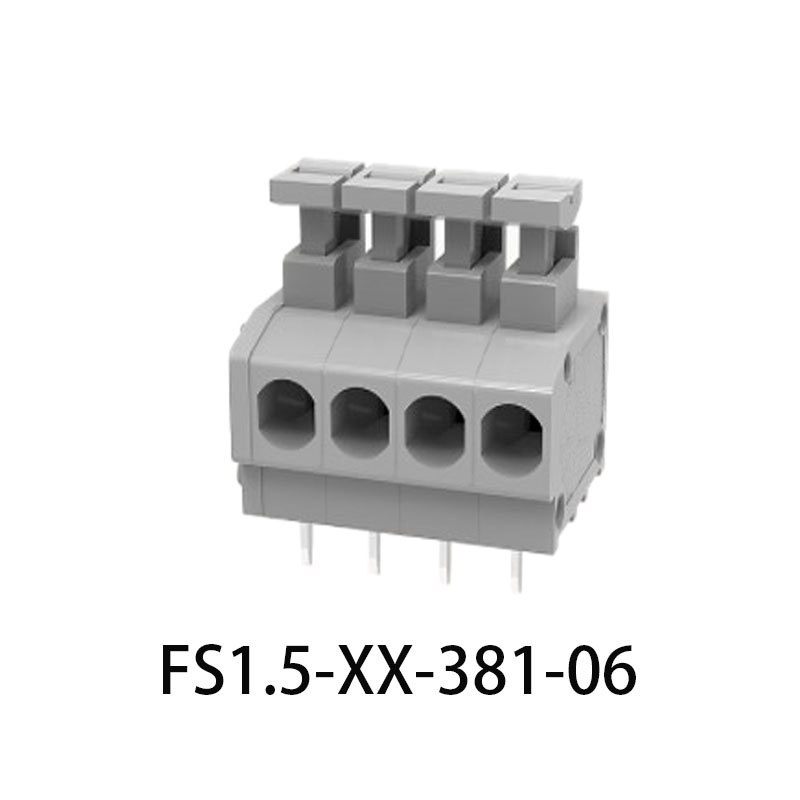

PCB spring terminal block Rated current: 5A Rated voltage: 300V Wire range: 22-18AWG Pitch: 3.81mm Mounting: Wave soldering
Poles

01
02
03
04
05
06

07
08
09
10
11
12

13
14
15
16
17
18

19
20
21
22
23
24

Products weight: Package quantity:

UL/CUL
Use Group	B	C	D
Use Group	300	-	300
Rated Current [A]	5	-	5
Wire Range [AWG]	22~18
Dielectric Voltage-Withstand	1.6KV

IEC
Overvoltage Category	III	III	II
Contamination Class	3	2	2
Rated Voltage [V]	200	320	500
Rated Current [A]	17.5	17.5	17.56
Impulse withstand voltage [KV]	4	4	4
Conductor cross section [mm²]	0.5~1.5 0.75-1.5

Material
Insulation Material	PA66
Flame relardant rating	UL94-V0
Conductor Material	Copper alloy
Plating of conductor surface	Sn plated

Other Data
Pitch/Poles [mm]/[P]	3.81/1~30
Stripping Length [mm]	9~10
Screw/Torque(Max)[N.m]	/
Operating temperature [℃]	-40~+105
Soldering temperature	250℃/5S
Pin dimensions [mm]	0.8*0.4
PCB Hole Diameter [mm]	∅1.2
