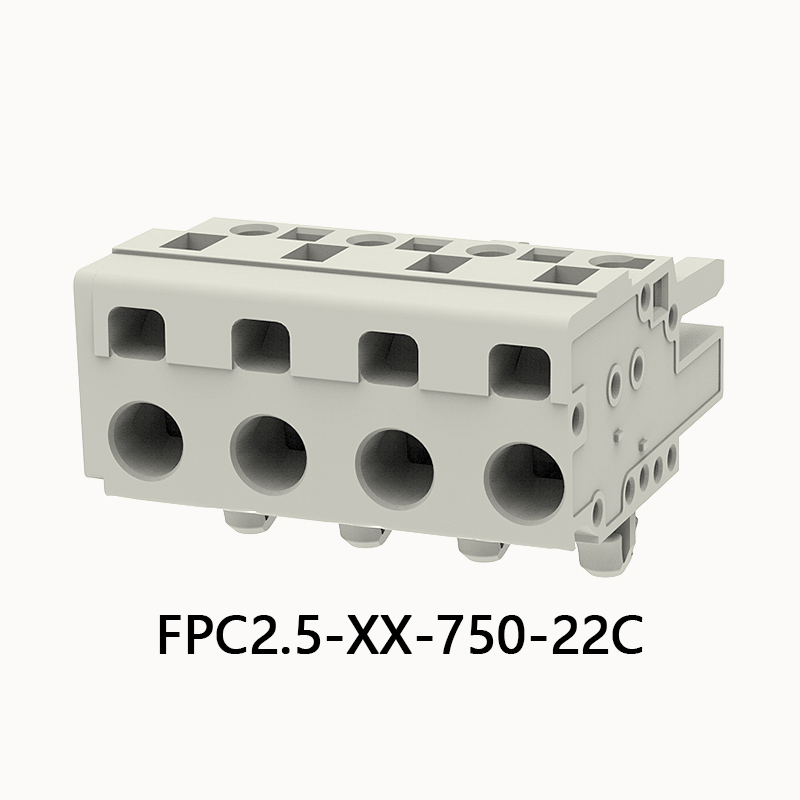

FPC2.5-XX-750-22C MCS Terminal blocks
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| UL/CUL | |||
| UL/CUL(Technical Data) | |||
| (Use Group) | B | C | D |
| (Rated Voltage) [V] | 300 | 150 | 300 |
| (Rated Current) [A] | 15 | 10 | 15 |
| (Wire Range) | |||
| (solid/Standed) [AWG] | |||
| (Withstanding Voltage) | 1600V/1Min | ||
| IEC | |||
| (Technical Data) | |||
| (Overvoltage Category) | ||| | ||| | || |
| (Contamination Class) | 3 | 2 | 2 |
| (Rated Voltage) [V] | 320 | ||
| (Rated Current) [A] | 20 | ||
| (Impulse wiithstand voltagea) [KV] | 4 | 4 | |
| (Conductor cross section) | |||
| (Solid/flexible) [mm²] | |||
| (Material) | |||
| (Insulation Material) | PA66 | ||
| (Imflammability) | UL94V-0 | ||
| (Contactor Material) | (Copper alloy) | ||
| (Contactive Coating) | (Tin Plated) | ||
| (Other Data) | |||
| (Pitch) [mm] | 5 | ||
| (Poles) [P] | |||
| (Stripping Length) [mm] | |||
| (Screw) | |||
| (Torque Max) [N.m] | |||
| (Operating temperatur) [℃] | -40~+105 | ||
| (Pin Dimensions) [mm] | 4 | ||
| (PCB Hole Diameter) [mm] | 1.6 | ||
