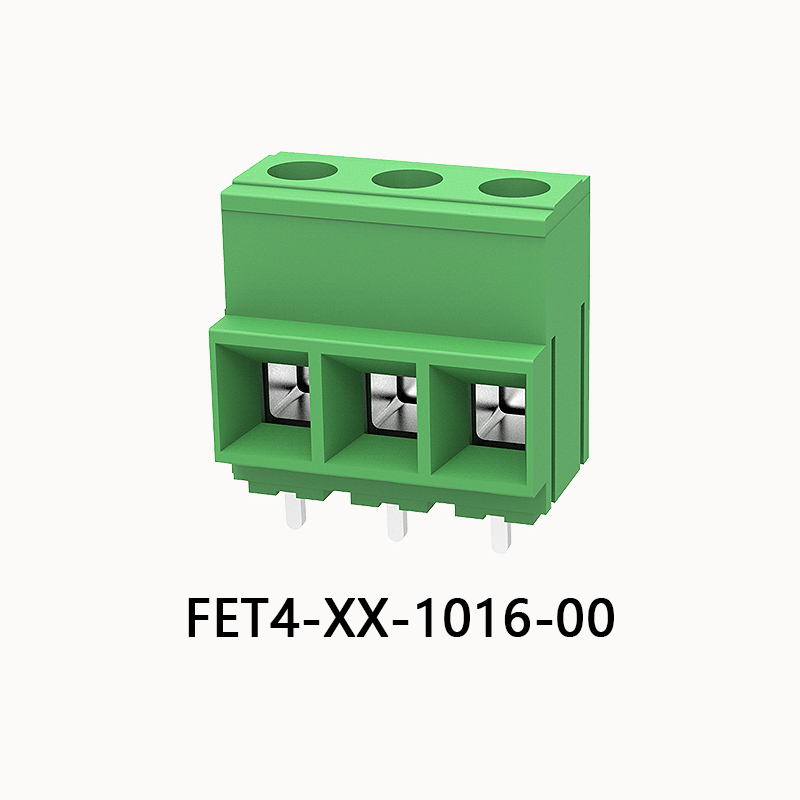

PCB terminal blocks,Rated current: 57A,Rated voltage （III/2）750V,Cross section:4-10mm²,pitch:10.16mm,connector method:Screw connector with tension sleeve,Color:green,Contact surface :Tin
Poles

2
3
4
5
6
7

8
9
10
11
12

Products weight: Package quantity:

UL/CUL
Use Group	B	C	D
Rate Voltage [V]	1000	-	1000
Rated Current [A]	76	-	76
Wire Range [AWG]
Dielectric Voltage-Withstand	1.6KV

IEC
Overvoltage Category	III	III	II
Contamination Class	3	2	2
Rated Voltage [V]	1000	1000	1000
Rated Current [A]	76	76	76
Impulse withstand voltage [KV]	4	4	4
Conductor cross section [mm²]	0.2-2.5

Material
Insulation Material	PA66
Flame relardant rating	UL94V-0
Conductor Material	Copper alloy
Plating of conductor surface	Sn plated

Other Data
Pitch/Poles [mm]/[P]	10.0/2-24
Stripping Length [mm]	7-8
Screw/Torque(Max)[N.m]	M3/0.5
Operating temperature [℃]	-40~+105
Soldering temperature	/
Pin dimensions [mm]	/
PCB Hole Diameter [mm]	/
