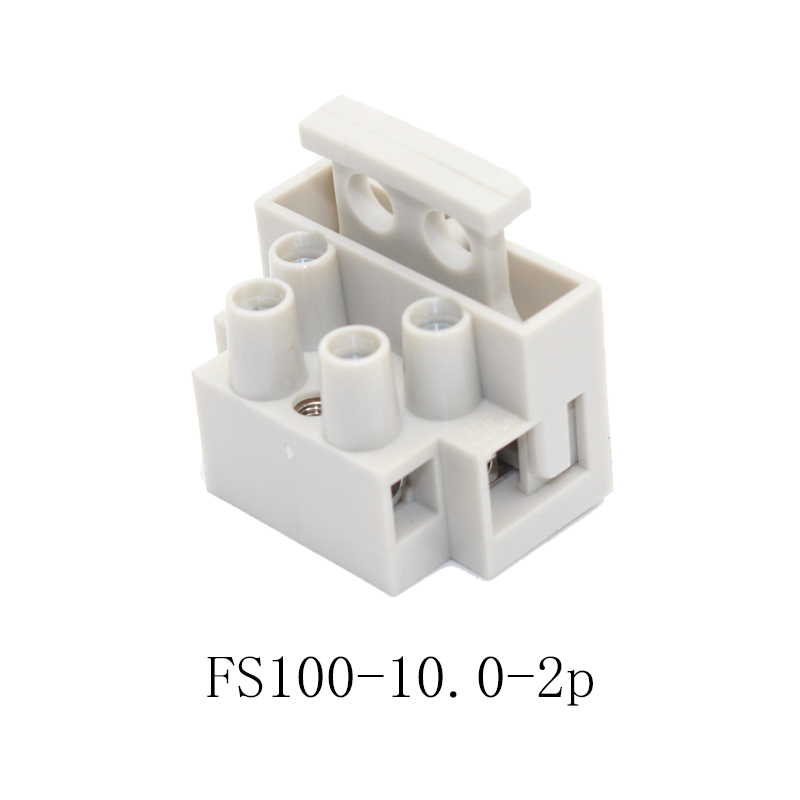

FS100-10.0PCB Spring terminal blocks
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| Material | |||
| Screws | M3.0 Steel Ni plated | ||
| Pin Header | Copper alloy，Sn plated | ||
| Housing | PA66，UL94V-0 | ||
| Electrical | |||
| Standard | UL | IEC | |
| Rated voltage | 300V | 250V | |
| Rated current | 10A | 17.5A | |
| Wire range | 22-16AWG | 1.5mm² | |
| Contact Resistance | 20mΩ | ||
| Insulation resistance | 500MΩ/DC500V | ||
| Withstanding voltage | AC2000V/1Min | ||
| Other Data | |||
| Pitch/Poles [mm]/[P] | 6.35/2-30 | ||
| Operating temperature [℃] | -40℃~+105℃ | ||
| Torque | 5.1Kgf.cm/0.5Nm/4.43Lb.in | ||
