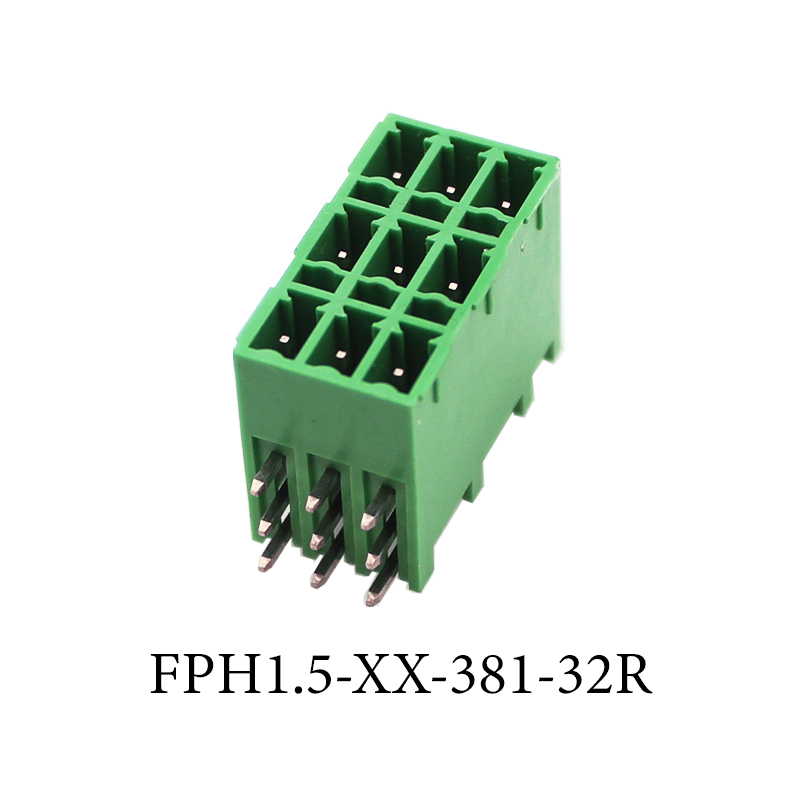

FPH1.5-XX-381-32R PCB Plug in terminal block
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| UL/CUL |  | ||
| UL/CUL(Technical Data) | |||
| (Use Group) | B | C | D |
| (Rated Voltage) [V] | 300 | 300 | |
| (Rated Current) [A] | 8 | 10 | |
| (Wire Range) | |||
| (solid/Standed) [AWG] | |||
| (Withstanding Voltage) | 1600V/1Min | ||
| IEC | | ||
| (Technical Data) | |||
| (Overvoltage Category) | ||| | ||| | || |
| (Contamination Class) | 3 | 2 | 2 |
| (Rated Voltage) [V] | 160 | 320 | |
| (Rated Current) [A] | 7 | 7 | |
| (Impulse wiithstand voltagea) [KV] | 2.5 | 2.5 | |
| (Conductor cross section) | |||
| (Solid/flexible) [mm²] | |||
| (Material) | |||
| (Insulation Material) | PA66 | ||
| (Imflammability) | UL94V-0 | ||
| (Contactor Material) | Copper alloy | ||
| (Contactive Coating) | Tin Plated | ||
| (Other Data) | |||
| (Pitch) [mm] | 3.81 | ||
| (Poles) [P] | 3x(2-24) | ||
| (Stripping Length) [mm] | |||
| (Screw) | |||
| (Torque Max) [N.m] | |||
| (Operating temperatur) [℃] | -40~+105 | ||
| (Pin Dimensions) [mm] | 2.6 | ||
| (PCB Hole Diameter) [mm] | 1.4 | ||
