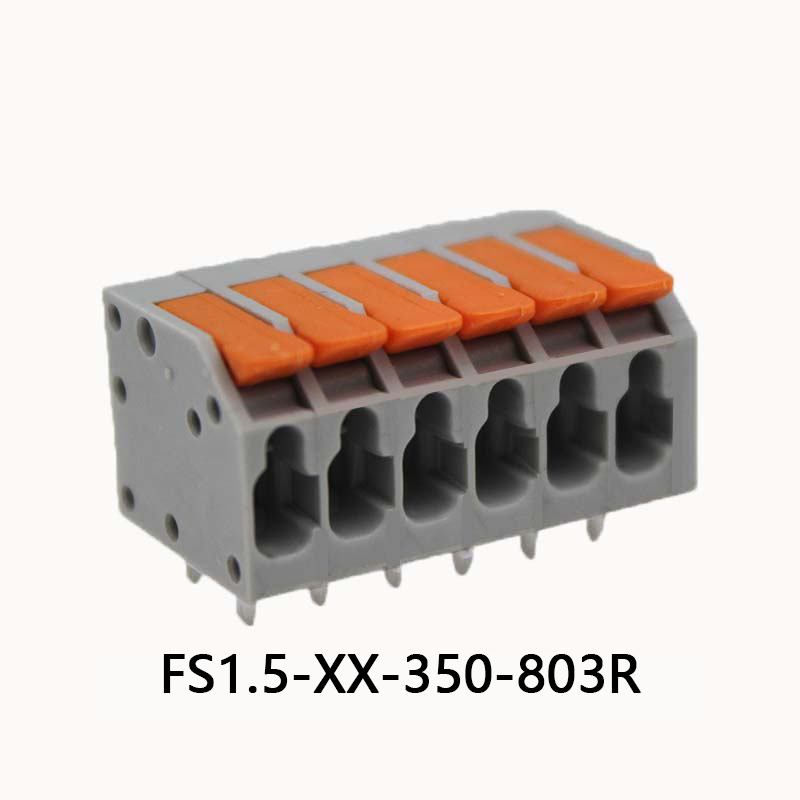

FS1.5-XX-350-803R PCB spring terminal blocks
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| UL/CUL | ||||
| Use Group | B | C | D | |
| Rate Voltage [V] | 300 | - | 300 | |
| Rated Current [A] | 10 | - | 10 | |
| Wire Range [AWG] | 24~16 | |||
| Dectric Voltage-Withstand | 1.6KV | |||
| IEC | ||||
| Overvoltage Category | III | III | II | |
| Contamination Class | 3 | 2 | 2 | |
| Rated Voltage [V] | 160 | 160 | 320 | |
| Rated Current [A] | 17.5 | 17.5 | 17.5 | |
| Impulse withstand voltage [KV] | 2.5 | 2.5 | 2.5 | |
| Conductor cross section [mm²] | 0.2~1.5 | |||
| Material | ||||
| Insulation Material | LCP | |||
| Flame relardant rating | UL94V-0 | |||
| Conductor Material | Copper alloy | |||
| Plating of conductor surface | Sn plated | |||
| Other Data | ||||
| Pitch/Poles [mm]/[P] | 3.5，3.81/2~24 | |||
| Stripping Length [mm] | 7~8 | |||
| Screw/Torque(Max)[N.m] | / | |||
| Operating temperature [℃] | -40~+130 | |||
| Soldering temperature | 285℃/10S | |||
| Pin dimensions [mm] | 0.8*0.4 | |||
| PCB Hole Diameter [mm] | ∅1.2 | |||
