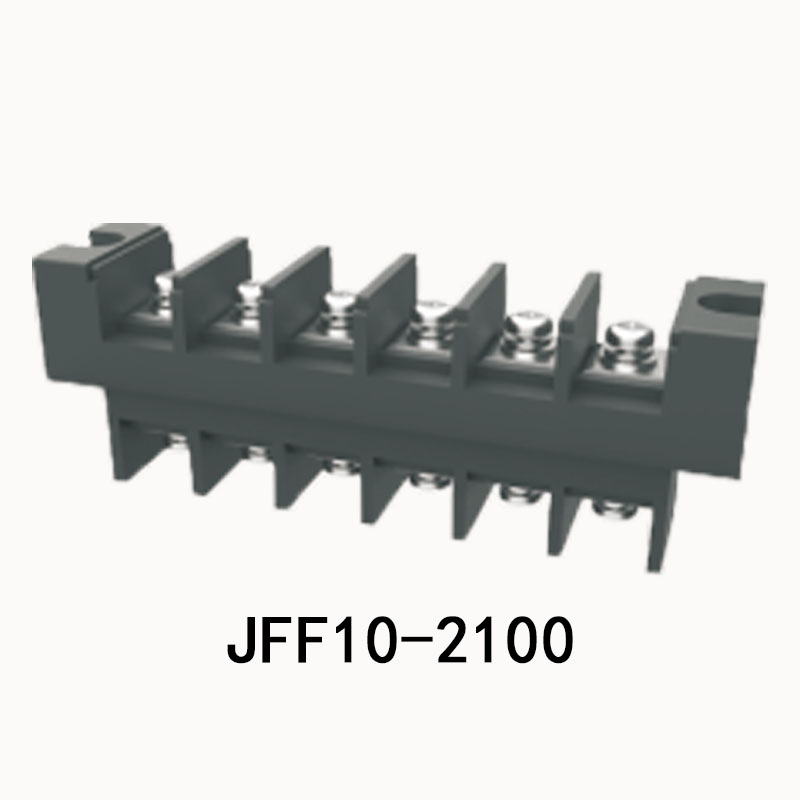

JFF10-2100 Barrier terminal block
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| Material | ||
| Screws | M6.0 Steel Zn plated | |
| Pin Header | Copper alloy，Sn plated | |
| Housing | PBT，UL94V-0 | |
| Electrical | ||
| Standard | UL | |
| Rated voltage | 600V | |
| Rated current | 115A | |
| Wire range | 8-2AWG | |
| Contact Resistance | 20mΩ | |
| Insulation resistance | 1000MΩ/DC500V | |
| Withstanding voltage | AC2500V/1Min | |
| Other Data | ||
| Pitch/Poles [mm]/[P] | 21.0/1-15 | |
| Operating temperature [℃] | -40℃~+130℃ | |
| Torque | 30.6Kgf.cm/3.0Nm/26.6Lb.in | |
