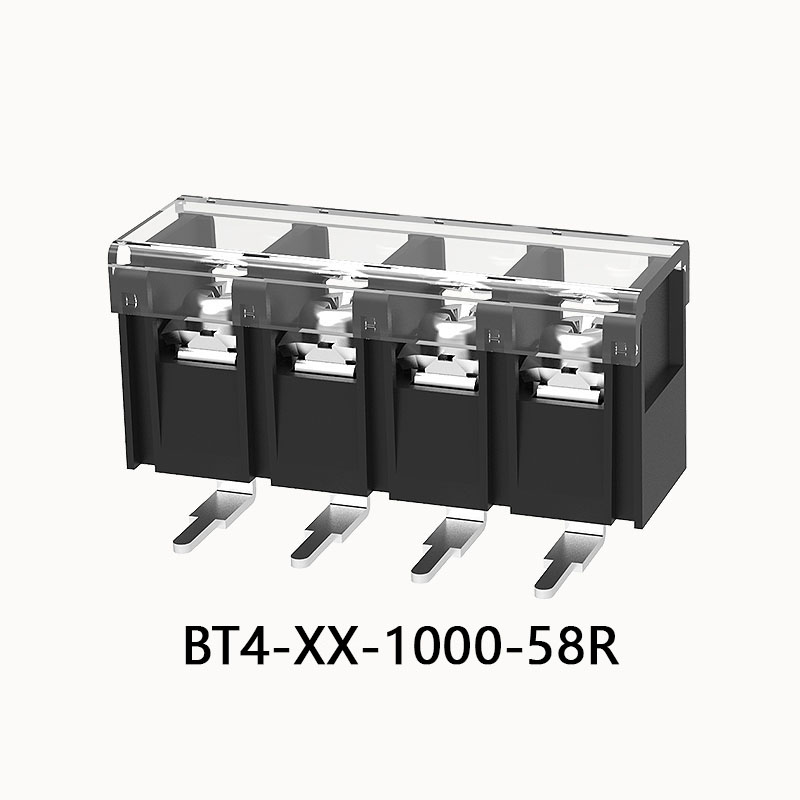

BT4-XX-1000-58R Barrier-terminal-blocks
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| 材质及电镀 Material | |||
| 螺丝 Screws | M4.0 Steel Ni plated | ||
| 焊脚 Pin Header | Copper alloy，Sn plated | ||
| 塑件 Housing | PA66，UL94V-0 | ||
| 电气性能 Electrical | |||
| 参考标准 Standard | UL | IEC | |
| 额定电压 Rated voltage | 300V | 400V | |
| 额定电流 Rated current | 20A | 24A | |
| 使用线径 Wire range | 22-12AWG | 2.5mm² | |
| 接触电阻 Contact Resistance | 20mΩ | ||
| 绝缘电阻 Insulation resistance | 500MΩ/DC500V | ||
| 耐电压 Withstanding voltage | AC2000V/1Min | ||
| 一般参数 Other Data | |||
| 间距/极数 Pitch/Poles [mm]/[P] | 10.0/2-20 | ||
| 工作温度 Operating temperature [℃] | -40℃~+105℃ | ||
| 扭矩 Torque | 12.24Kgf.cm/1.2Nm/10.6Lb.in | ||
