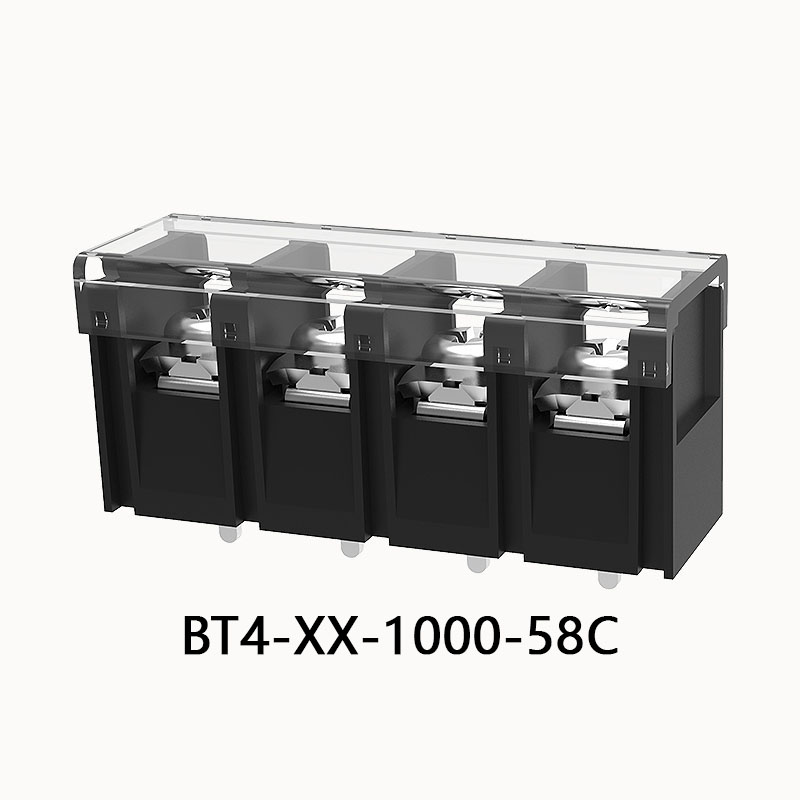

BT4-XX-1000-58C Barrier-terminal-blocks
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| Material | |||
| Screws | M4.0 Steel Ni plated | ||
| Pin Header | Copper alloy，Sn plated | ||
| Housing | PA66，UL94V-0 | ||
| Electrical | |||
| Standard | UL | IEC | |
| Rated voltage | 300V | 400V | |
| Rated current | 20A | 24A | |
| Wire range | 22-12AWG | 2.5mm² | |
| Contact Resistance | 20mΩ | ||
| Insulation resistance | 500MΩ/DC500V | ||
| Withstanding voltage | AC2000V/1Min | ||
| Temp.range | -40℃~+105℃ | ||
| Torque | 12.24Kgf.cm/1.2Nm/10.6Lb.in | ||
| Other Data | |||

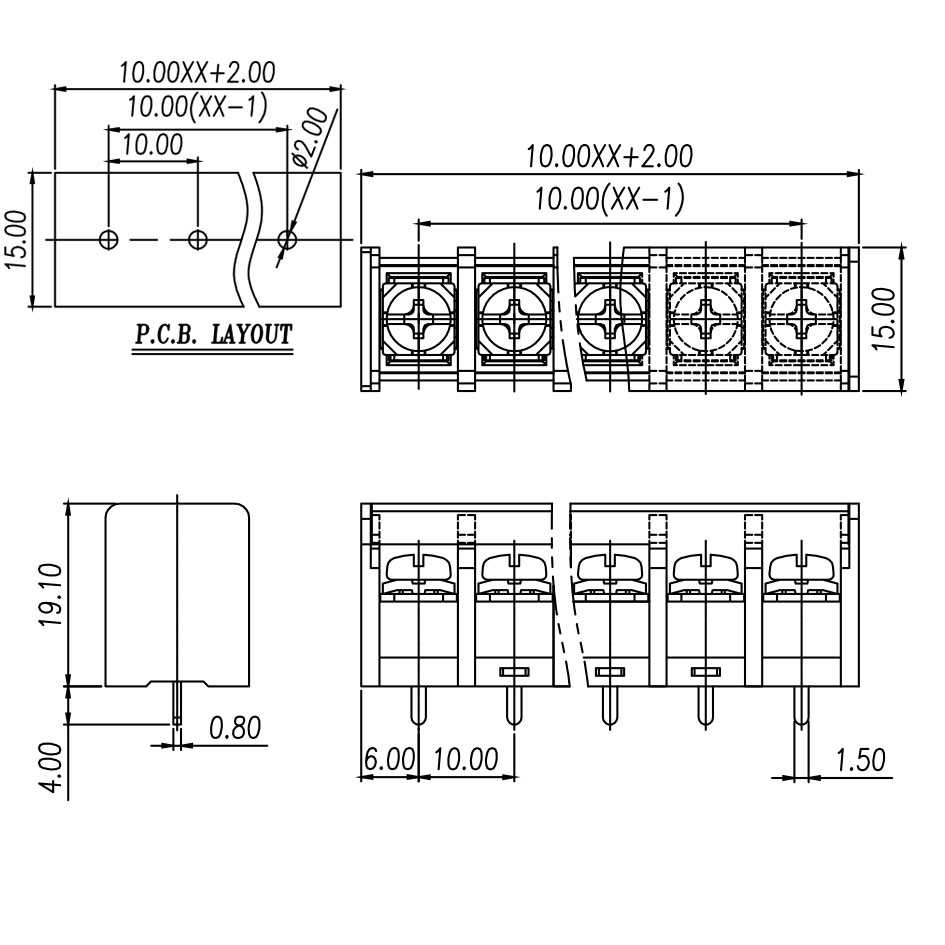

| Pitch/Poles [mm]/[P] | 10.0/2-20 | ||
| Operating temperature [℃] | -40℃~+105℃ | ||
| Torque | 12.24Kgf.cm/1.2Nm/10.6Lb.in | ||
