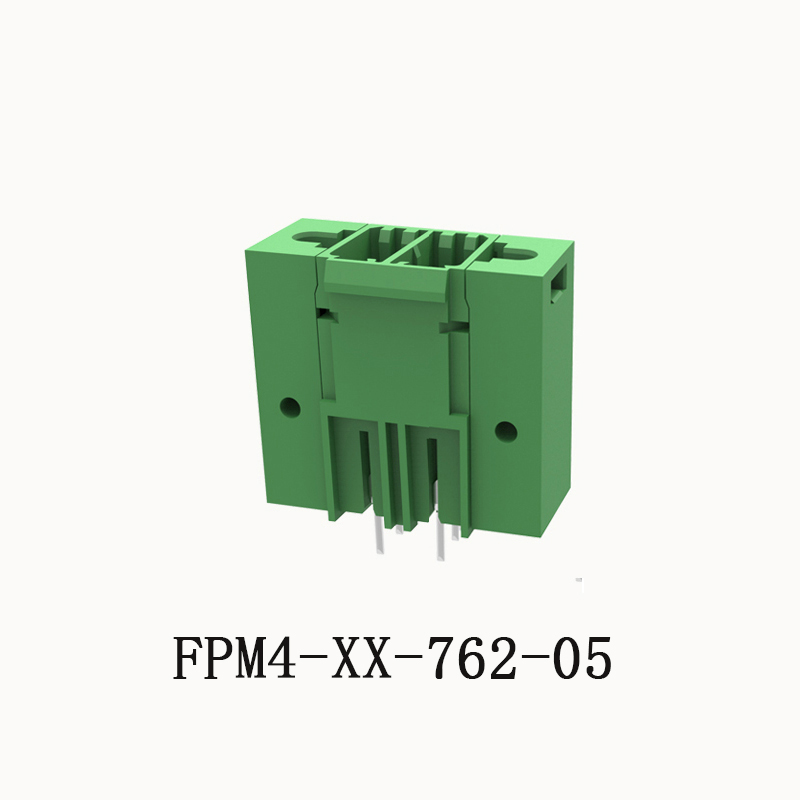

FPM4-XX-762-05 PLUG-IN TERMINAL BLOCK
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| Connection capacity | |
| Conductor cross section solid | 0.2~6mm² |
| Conductor cross section flexible | 0.2~6mm² |
| AWG | 24~8AWG |
| Strip length | 7mm |
| Electrical parameters UL | |
| Rated voltage (B) | 300V |
| Rated voltage (D) | 300V |
| Rated current (B) | 41A |
| Rated current (D) | 15A |
| Electrical parameters IEC | |
| Rated voltage | 630V |
| Rated current | 41A |
| Rated current(III/2) | 630V |
| Rated surge voltage(III/2) | 6KV |
| Item properties | |
| Connection direction | 90° |
| Connection method | Screw connection |
| Screwdriver | Slotted screwdriver |
| screw thread | M3 |
| Pitch | 7.62mm |
| Number of potentials | 2-24 |
| Pluggable or not | Yes |
| Number of rows | 1 |
| Material data | |
| Environmental items | Compliant with REACH/RoHS |
| Contact material | Copper alloy |
| Contact point metal surface | tin-plated |
| Contact zone metal surface | tin-plated |
| Insulation Materials | PA66 |
| Insulating material group | Ⅰ |
| Flammability rating | UL94V-0 |
| Mechanical tests | |
| Test Specification | IEC61984/ UL1059 |
| Environmental data | |
| Ambient temperature (operation) | -40℃~105℃ |
| Flammability rating | UL94V-0 |
| Mechanical tests | |
| Test Specification | IEC61984/ UL1059 |
| Environmental data | |
| Ambient temperature (operation) | -40℃~105℃ |
