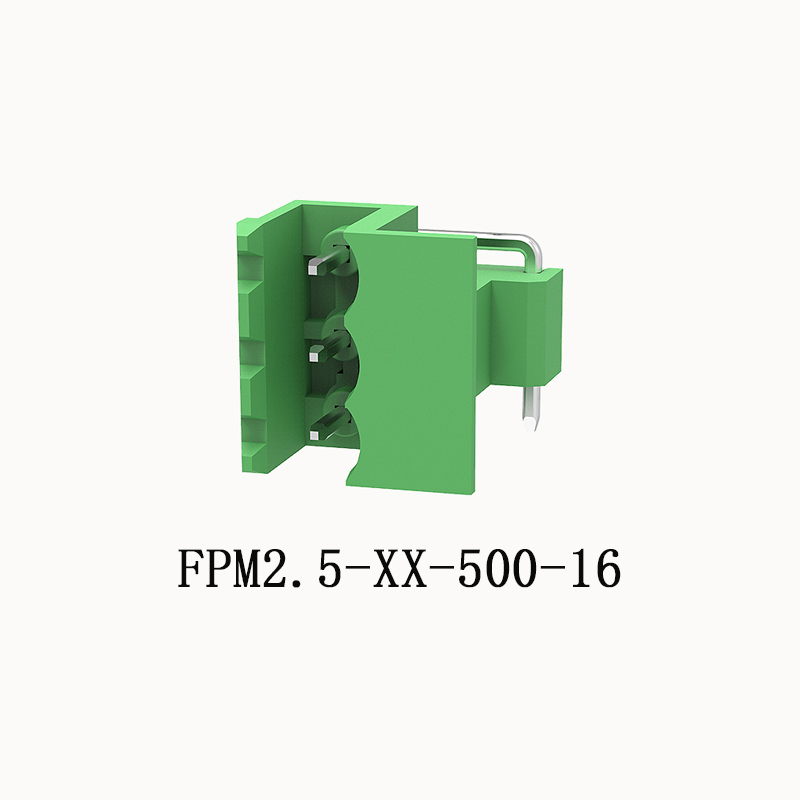

FPM2.5-XX-500-16 PLUG-IN TERMINAL BLOCK

  • plug-in terminal block Rated current: 15A Rated voltage: 300 V Pitch: 5.00 mm
  • 2
    3
    4
Products weight: Package quantity:

Details

Connection capacity
Conductor cross section solid1.0~2.5mm²
Conductor cross section flexible1.0~2.5mm²
AWG28~12AWG
Strip length7mm


Electrical parameters UL
Rated voltage (B)300V
Rated voltage (D)300V
Rated current (B)15A
Rated current (D)10A


Electrical parameters IEC
Rated voltage320V
Rated current18A
Rated current(III/2)320V
Rated surge voltage(III/2)4KV


Item properties
Connection direction90°
Connection methodScrew connection
ScrewdriverSlotted screwdriver
screw threadM3
Pitch5.0mm
Number of potentials2-24
Pluggable or notYes
Number of rows1


Material data
Environmental itemsCompliant with REACH/RoHS
Contact materialCopper alloy
Contact point metal surfacetin-plated
Contact zone metal surfacetin-plated
Insulation MaterialsPA66
Insulating material group
Flammability ratingUL94V-0
Mechanical tests
Test SpecificationIEC61984/ UL1059
Environmental data
Ambient temperature (operation)-40℃~105℃
Flammability ratingUL94V-0

Mechanical tests
Test SpecificationIEC61984/ UL1059

Environmental data
Ambient temperature (operation)-40℃~105℃
