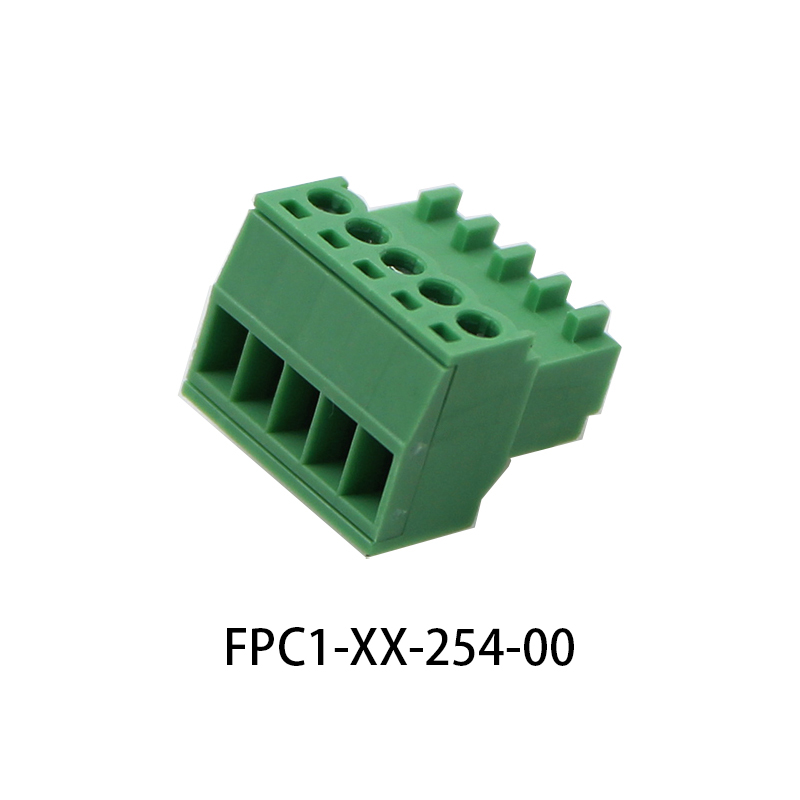

FPC1-XX-254-00 PBC PLUG-IN TERMINAL BLOCK
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| UL/CUL |  | ||
| (Technical Data) | |||
| (Use Group) | B | C | D |
| (Rated Voltage) [V] | 125 | 150 | |
| (Rated Current) [A] | 4 | 4 | |
| (Wire Range) | 28-20 | ||
| (solid/Standed) [AWG] | |||
| (Withstanding Voltage) | 1250V/1Min | ||
| 技术参数 | | ||
| (Technical Data) | |||
| (Overvoltage Category) | ||| | ||| | || |
| (Contamination Class) | 3 | 2 | 2 |
| (Rated Voltage) [V] | 160 | 320 | |
| (Rated Current) [A] | 5 | 5 | |
| (Impulse wiithstand voltagea) [KV] | 2.5 | 2.5 | |
| (Conductor cross section) | 0.5 | ||
| (Solid/flexible) [mm²] | |||
| (Material) | |||
| (Insulation Material) | PA66 | ||
| (Imflammability) | UL94V-0 | ||
| (Contactor Material) | 铜合金(Copper alloy) | ||
| (Contactive Coating) | 镀镍(Ni Plated) | ||
| (Other Data) | |||
| (Pitch) [mm] | 2.54 | ||
| (Poles) [P] | 2月24日 | ||
| (Stripping Length) [mm] | 5月6日 | ||
| (Screw) | M1.6/0.1 | ||
| (Torque Max) [N.m] | |||
| (Operating temperatur) [℃] | -40~+105 | ||
| (Pin Dimensions) [mm] | |||
| (PCB Hole Diameter) [mm] | |||
