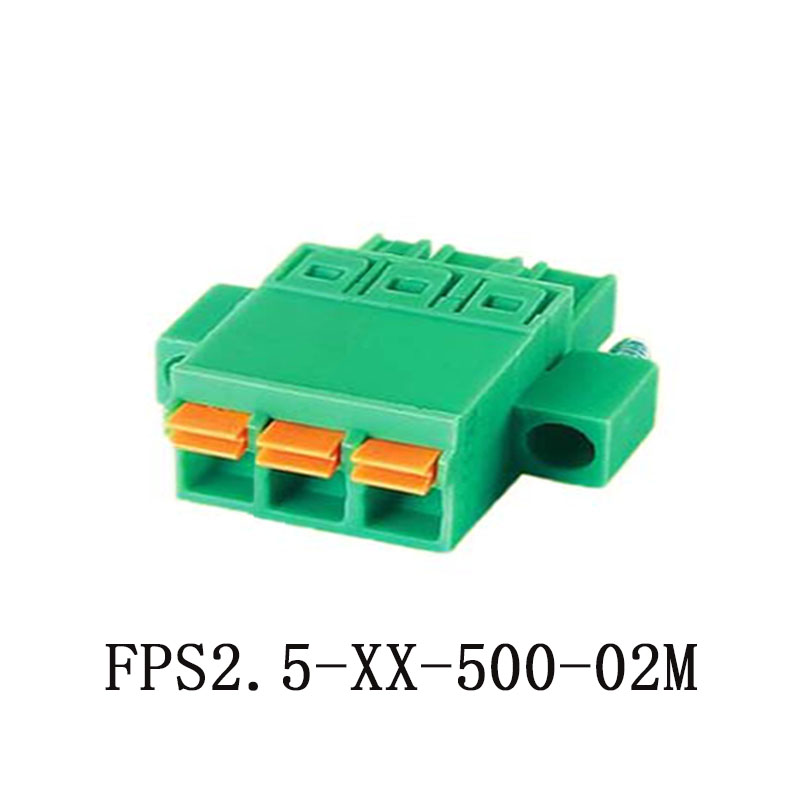

FPS2.5-XX-500-02M PLUG-IN TERMINAL BLOCK
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
<
 | ||||
| UL/CUL | ||||
| Use Group | B | C | D | |
| Rate Voltage [V] | 300 | - | 300 | |
| Rated Current [A] | 12 | - | 10 | |
| Wire Range [AWG] | 24-16 | |||
| Dielectric Voltage-Withstand | 1.6KV | |||
| IEC | ||||
| Overvoltage Category | III | III | II | |
| Contamination Class | 3 | 2 | 2 | |
| Rated Voltage [V] | 320 | 320 | 630 | |
| Rated Current [A] | 12 | 12 | 12 | |
| Impulse withstand voltage [KV] | 4 | 4 | 4 | |
| Conductor cross section[solid/flexible] [mm²] | 0.2-1.5 | 0.2-2.5 | ||
| Material | ||||
| Insulation Material | PA66 | |||
| Flame relardant rating | UL94V-0 | |||
| Conductor Material | Copper alloy | |||
| Plating of conductor surface | Sn plated | |||
| Other Data | ||||
| Pitch/Poles [mm]/[P] | 5.0，5.08/2-24 | |||
| Stripping Length [mm] | 11月12日 | |||
| Screw/Torque(Max)[N.m] | / | |||
| Operating temperature [℃] | -40~+105 | |||
| Soldering temperature | / | |||
| Pin dimensions [mm] | / | |||
| PCB Hole Diameter [mm] | / | |||
