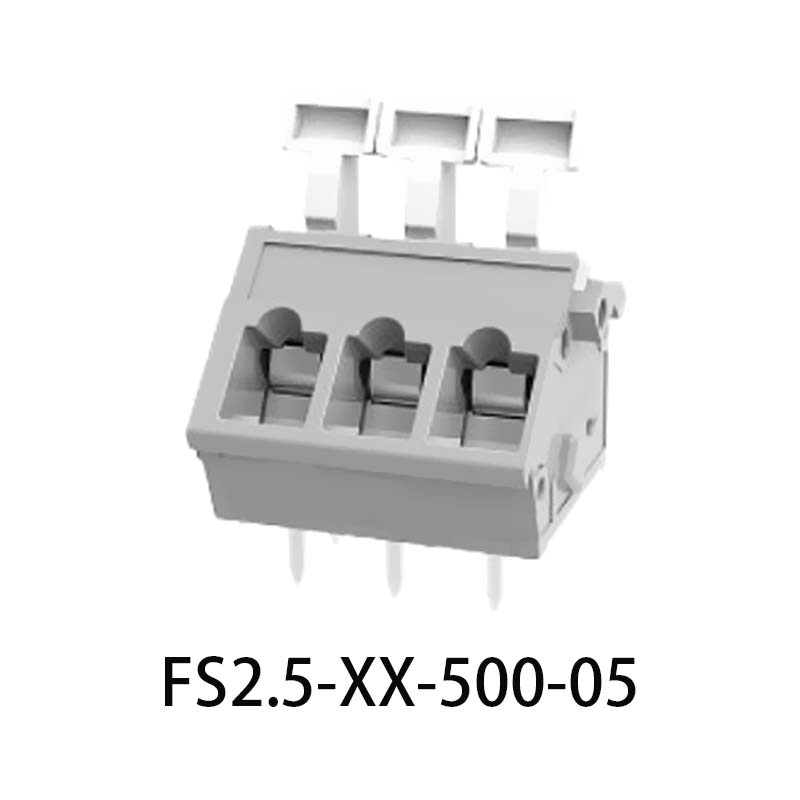

PCB spring terminal block Rated current: 15A Rated voltage: 300V Wire range: 26-14AWG Pitch: 5.0mm Mounting: Wave soldering
Poles

1
2
3
4
5
6

7
8
9
10
11
12

13
14
15
16
17
18

19
20
21
22
23
24

Products weight: Package quantity:

UL/CUL
Use Group	B	C	D
Rate Voltage [V]	300	-	300
Rated Current [A]	10	-	10
Wire Range [AWG]	24~16
Dielectric Voltage-Withstand	1.6KV
IEC
Overvoltage Category	III	III	II
Contamination Class	3	2	2
Rated Voltage [V]	250	320	500
Rated Current [A]	17.5	17.5	17.5
Impulse withstand voltage [KV]	4	4	4
Conductor cross section [mm²]	0.2~1.5
Material
Insulation Material	LCP
Flame relardant rating	UL94V-0
Conductor Material	Copper alloy
Plating of conductor surface	Sn plated
Other Data
Pitch/Poles [mm]/[P]	5.0，5.08/2~24
Stripping Length [mm]	7~8
Screw/Torque(Max)[N.m]	/
Operating temperature [℃]	-40~+130
Soldering temperature	285℃/10S
Pin dimensions [mm]	0.8*0.4
PCB Hole Diameter [mm]	∅1.2
