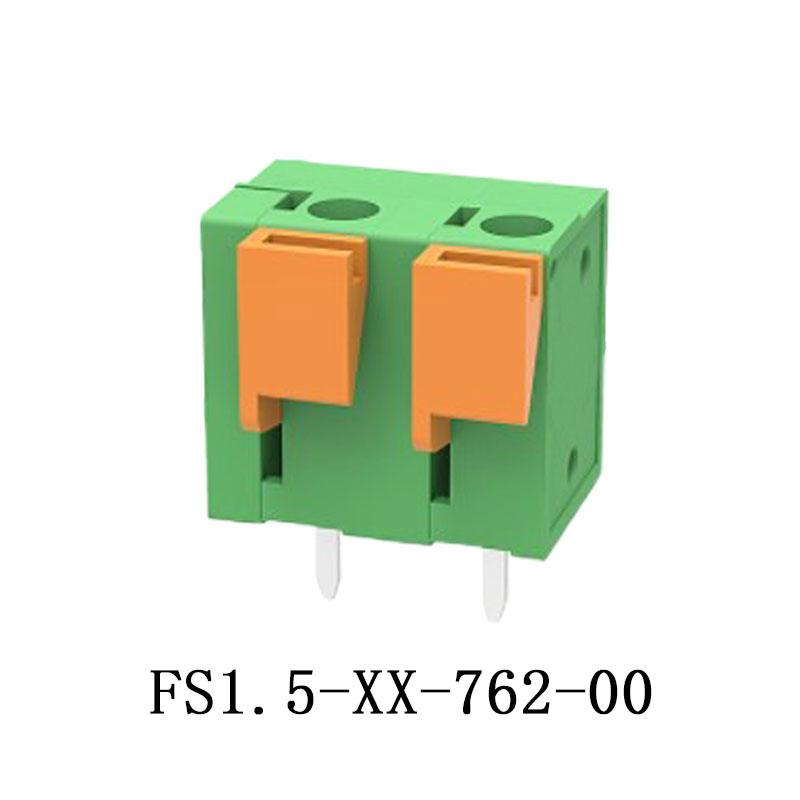

PCB spring terminal block Rated current: 10A Rated voltage: 300 V Wire range: 24-14 AWG Pitch: 7.5mm/7.62mm Mounting: Wave soldering
Poles

01
02
03
04
05
06

07
08
09
10
11
12

13
14
15
16
17
18

19
20
21
22
23
24

Products weight: Package quantity:

UL/CUL
Use Group	B	C	D
Use Group	300	-	300
Rated Current [A]	10	-	10
Wire Range [AWG]	24~14
Dielectric Voltage-Withstand	1.6KV

IEC
Overvoltage Category	III	III	II
Contamination Class	3	2	2
Rated Voltage [V]	500	630	1000
Rated Current [A]	15	15	15
Impulse withstand voltage [KV]	6	6	6
Conductor cross section [mm²]	0.2~1.5

Material
Insulation Material	PA66
Flame relardant rating	UL94-V0
Conductor Material	Copper alloy
Plating of conductor surface	Sn plated

Other Data
Pitch/Poles [mm]/[P]	7.5,7.62/2-24
Stripping Length [mm]	10-11
Screw/Torque(Max)[N.m]	/
Operating temperature [℃]	-40~+105
Soldering temperature	250℃/5S
Pin dimensions [mm]	1.0*0.5
PCB Hole Diameter [mm]	∅1.4
