技术数据 | 技术数据-UL/CUL |
等级 | 等级 Use Group | B | C | D |
等级 | 额定电压 Rate Voltage [V] | 300 | - | 300 |
额定电流 [A] | 额定电流 Rated Current [A] | 15 | - | 10 |
接线范围 [AWG] | 接线范围 Wire Range [AWG] | 12--28 |
耐电压 | 耐电压 Dielectric Voltage-Withstand | 1.6KV |
|
|
技术参数 | 技术参数-IEC |
过电压类别 | 过电压类别 Overvoltage Category | III | III | II |
污染等级 | 污染等级 Contamination Class | 3 | 2 | 2 |
额定电压[V] | 额定电压 Rated Voltage [V] | 250 | 320 | 400 |
额定电流 [A] | 额定电流 Rated Current [A] | 12 | 12 | 12 |
额定冲击电压[KV] | 额定冲击电压 Impulse withstand voltage [KV] | 4 | 4 | 4 |
导线截面积[硬/柔] [mm²] | 导线截面积[硬/柔] Conductor cross section [mm²] | 0.2-2.5 |
|
|
材料 | 材料 Material |
|
绝缘材料 | 绝缘材料 Insulation Material | PA66 |
阻燃等级 | 阻燃等级 Flame relardant rating | UL94V-0 |
导体材料 | 导体材料 Conductor Material | Copper alloy |
导体表面镀层 | 导体表面镀层 Plating of conductor surface | Sn plated |
|
|
一般参数 | 一般参数 Other Data |

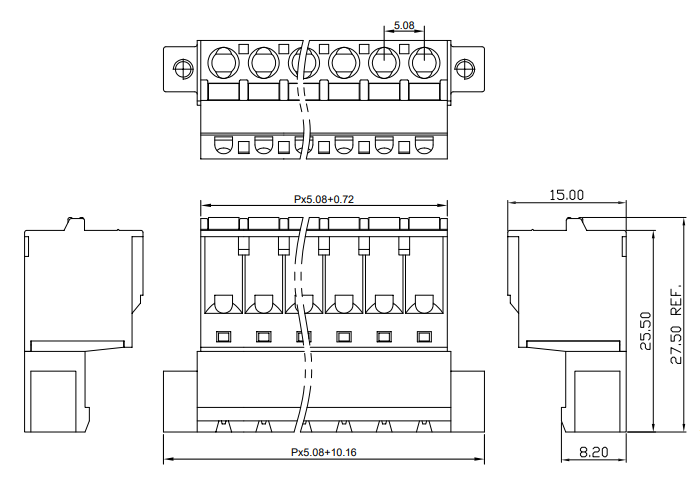

间距/极数 [mm]/[P] | 间距/极数 Pitch/Poles [mm]/[P] | 5.08/2-24 |
剥线长度 [mm] | 剥线长度 Stripping Length [mm] | 7--8 |
螺丝/扭矩 (Max)[N.m] | 螺丝/扭矩 Screw/Torque(Max)[N.m] | M3/0.5 |
工作温度[℃] | 工作温度 Operating temperature [℃] | -40~+105 |
焊锡温度 | 焊锡温度 Soldering temperature | / |
引针尺寸 [mm] | 引针尺寸 Pin dimensions [mm] | / |
PCB板孔径 [mm] | PCB板孔径 PCB Hole Diameter [mm] | / |
