FPM1.5-XX-508-00R插拔式接线端子
Porducts
Contact Us
联系人：吴小姐
直线1：86-15999768769
直线2：86-15014816629
直线3：86-15016766649
QQ：931227993
邮箱 ：helenqing123@gmail.com
| 技术数据-UL/CUL | |||
| 等级 Use Group | B | C | D |
| 等级 Use Group | 300 | 300 | - |
| 额定电流 Rated Current [A] | 8 | 8 | - |
| 接线范围 Wire Range [AWG] | / | ||
| 耐电压 Dielectric Voltage-Withstand | 1.3KV | ||
| 技术参数-IEC | |||
| 过电压类别 Overvoltage Category | III | III | II |
| 污染等级 Contamination Class | 3 | 2 | 2 |
| 额定电压 Rated Voltage [V] | 80 | 160 | 200 |
| 额定电流 Rated Current [A] | 10 | 10 | 10 |
| 额定冲击电压 Impulse withstand voltage [KV] | 1.5 | 2.5 | 2.5 |
| 导线截面积[硬/柔] Conductor cross section [mm²] | / | ||
| 材料 Material | |||
| 绝缘材料 Insulation Material | PA66 | ||
| 阻燃等级 Flame relardant rating | UL94-V0 | ||
| 导体材料 Conductor Material | Copper alloy | ||
| 导体表面镀层 Plating of conductor surface | Sn piated | ||
| 一般参数 Other Data | |||

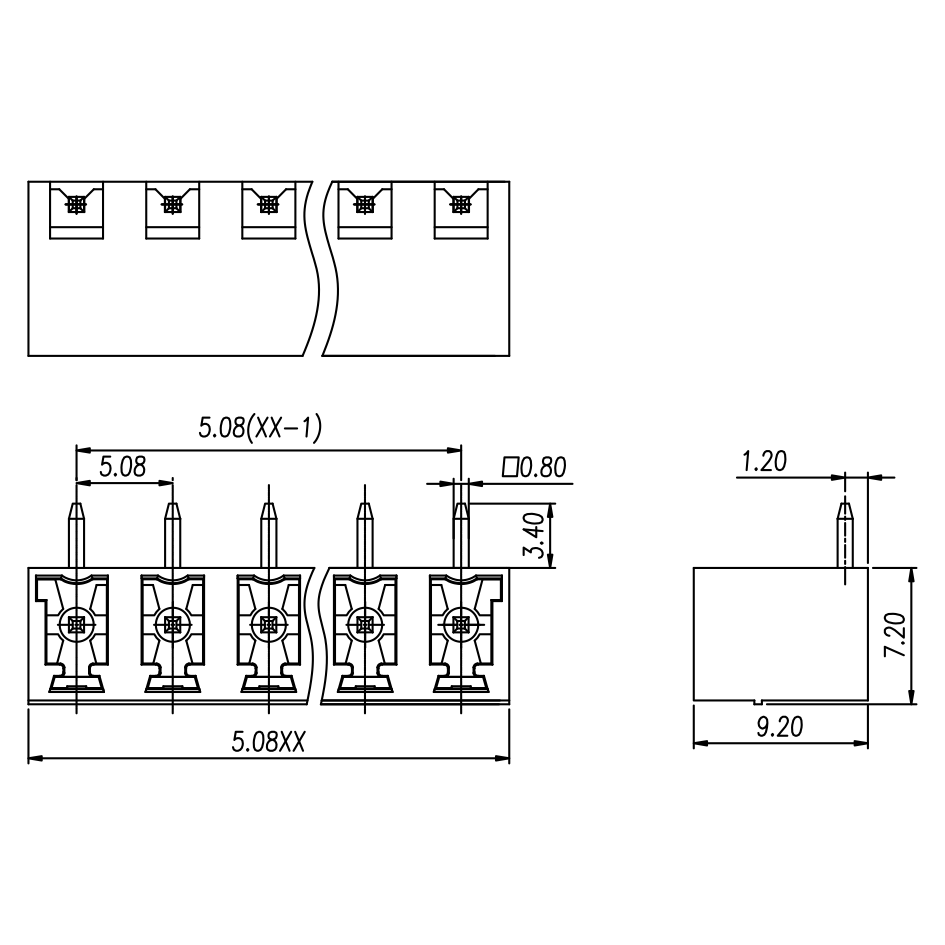

| 间距/极数 Pitch/Poles [mm]/[P] | 5.08/2-24 | ||
| 剥线长度 Stripping Length [mm] | / | ||
| 螺丝/扭矩 Screw/Torque(Max)[N.m] | / | ||
| 工作温度 Operating temperature [℃] | -40~+105 | ||
| 焊锡温度 Soldering temperature | 250°C/5s | ||
| 引针尺寸 Pin dimensions [mm] | 0.8*0.8 | ||
| PCB板孔径 PCB Hole Diameter [mm] | ∅1.4 | ||
