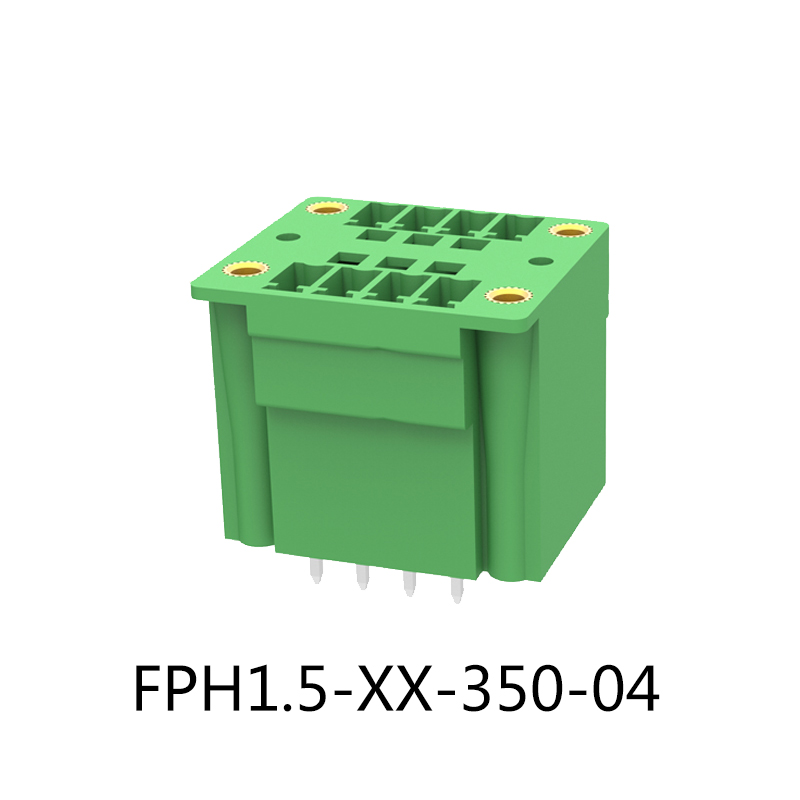

FPH1.5-XX-350-04 PCB Plug in terminal block

FPH1.5-XX-350-04 PCB Plug in terminal block

PCB Plug in terminal block Rated current: 8 A Rated voltage: 300 V Pitch:3.5mm
Poles

2*2
2*3
2*4
2*5
2*6
2*7

2*8
2*9
2*10
2*11
2*12

Products weight: Package quantity:

Details

UL/CUL
UL/CUL(Technical Data)
(Use Group)	B	C	D
(Rated Voltage) [V]	300		300
(Rated Current) [A]	8		10
(Wire Range)
(solid/Standed) [AWG]
(Withstanding Voltage)	1600V/1Min
IEC
(Technical Data)
(Overvoltage Category)	\|\|\|	\|\|\|	\|\|
(Contamination Class)	3	2	2
(Rated Voltage) [V]		160	320
(Rated Current) [A]		7	7
(Impulse wiithstand voltagea) [KV]		2.5	2.5
(Conductor cross section)
(Solid/flexible) [mm²]
(Material)
(Insulation Material)	PA66
(Imflammability)	UL94V-0
(Contactor Material)	铜合金(Copper alloy)
(Contactive Coating)	镀锡(Tin Plated)
(Other Data)
(Pitch) [mm]	3.5
(Poles) [P]	2x(2-24)
(Stripping Length) [mm]
(Screw)
(Torque Max) [N.m]
(Operating temperatur) [℃]	-40~+105
(Pin Dimensions) [mm]	3.7
(PCB Hole Diameter) [mm]	1.4
