FPH0.5-XX-254-29 PBC Plug in terminal block

FPH0.5-XX-254-29 PBC Plug in terminal block

PCB PLUG-IN terminal block Rated current: 5A Rated voltage: 150 V Pitch: 2.54mm

Products weight: Package quantity:

Details

UL/CUL
Use Group	BCD
Rate Voltage [V]	150--
Rated Current [A]	5--
Wire Range [AWG]	-
Dielectric Voltage-Withstand	1.3KV
IEC
Overvoltage Category	IIIIIIII
Contamination Class	322
Rated Voltage [V]	80160320
Rated Current [A]	666
Impulse withstand voltage [KV]	2.52.52.5
Conductor cross section [mm²]	-
Material
Insulation Material	LCP
Flame relardant rating	UL94V-0
Conductor Material	Copper alloy
Plating of conductor surface	Sn plated
Other Data

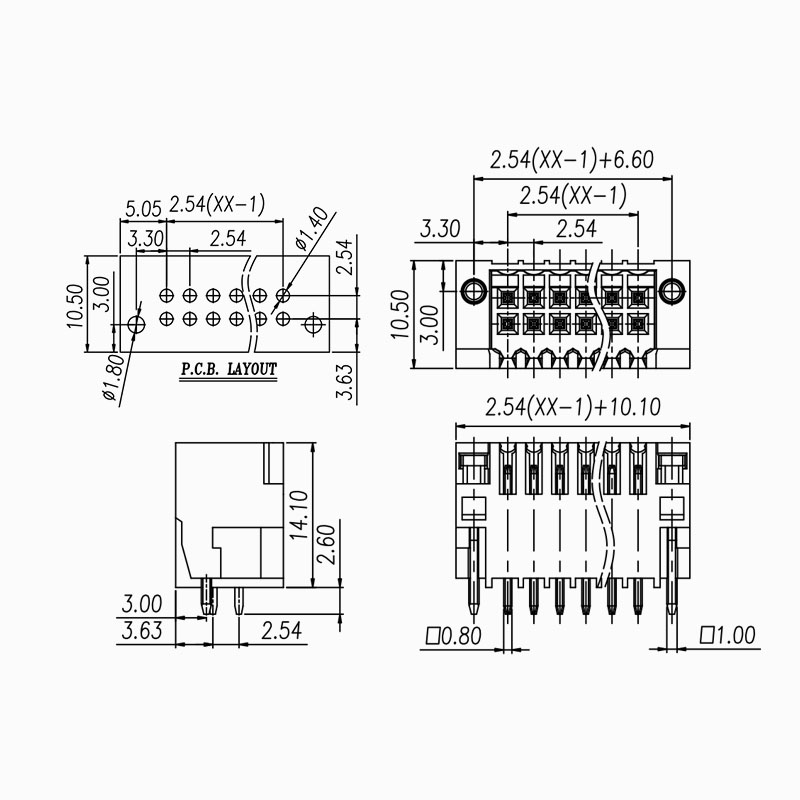

Pitch/Poles [mm]/[P]	2.54/22-224
Stripping Length [mm]	-
Screw/Torque(Max)[N.m]	-
Operating temperature [℃]	-40℃~+130℃
Soldering temperature	285℃/10S
Pin dimensions [mm]	0.8*0.8
PCB Hole Diameter [mm]	Ø1.4
