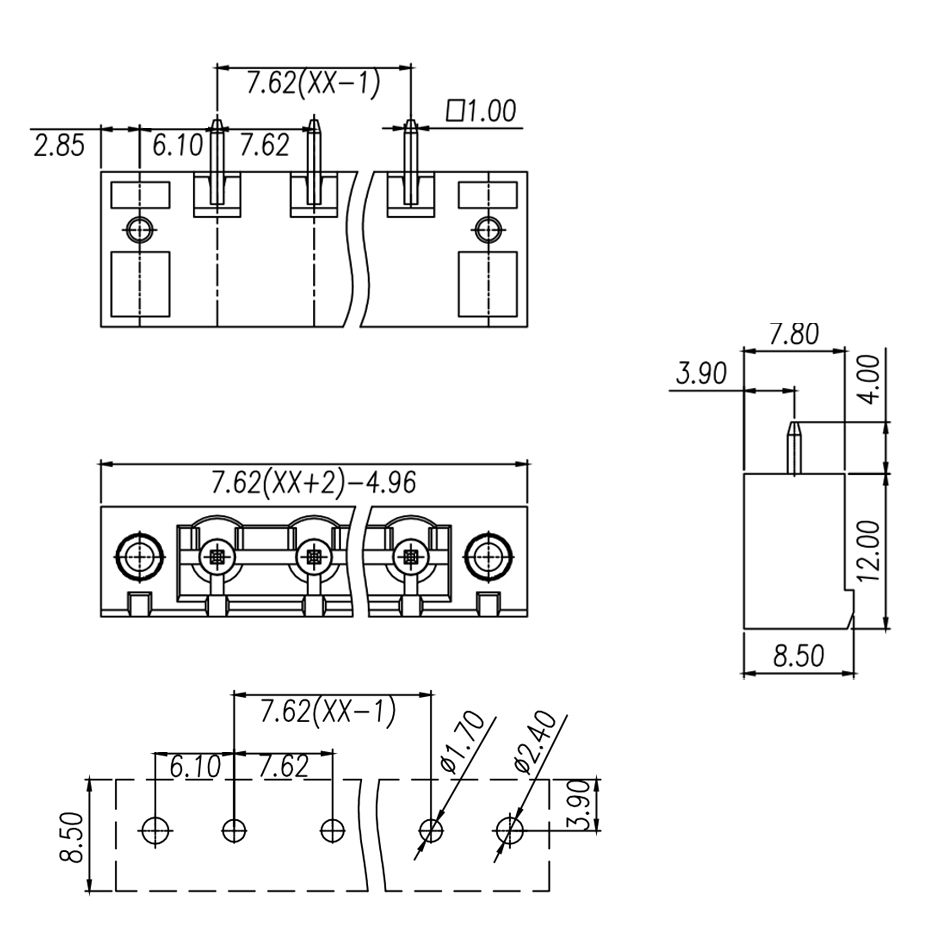

FPM2.5-XX-762-04 PCB plug terminal block

FPM2.5-XX-762-04 PCB plug terminal block

PCB spring terminal block Rated current: 16A Rated voltage: 300 Pitch:7.62mm
Poles

2
3
4
5
6
7

8
9
10

Products weight: Package quantity:

Details

UL/CUL
UL/CUL(Technical Data)
(Use Group)	B	C	D
(Rated Voltage) [V]	300		300
(Rated Current) [A]	10		10
(Wire Range)
(solid/Standed) [AWG]
(Withstanding Voltage)	1600V/1Min
IEC
(Technical Data)
(Overvoltage Category)	\|\|\|	\|\|\|	\|\|
(Contamination Class)		2	2
(Rated Voltage) [V]		630	1000
(Rated Current) [A]		15	15
(Impulse wiithstand voltagea) [KV]		6	6
(Conductor cross section)
(Solid/flexible) [mm²]
(Material)
(Insulation Material)	PA66
(Imflammability)	UL94V-0
(Contactor Material)	铜合金(Copper alloy)
(Contactive Coating)	镀锡(Tin Plated)
(Other Data)
(Pitch) [mm]	7.62
(Poles) [P]	2--24
(Stripping Length) [mm]
(Screw)
(Torque Max) [N.m]
(Operating temperatur) [℃]	-40~+105
(Pin Dimensions) [mm]	3.7
(PCB Hole Diameter) [mm]	1.6
