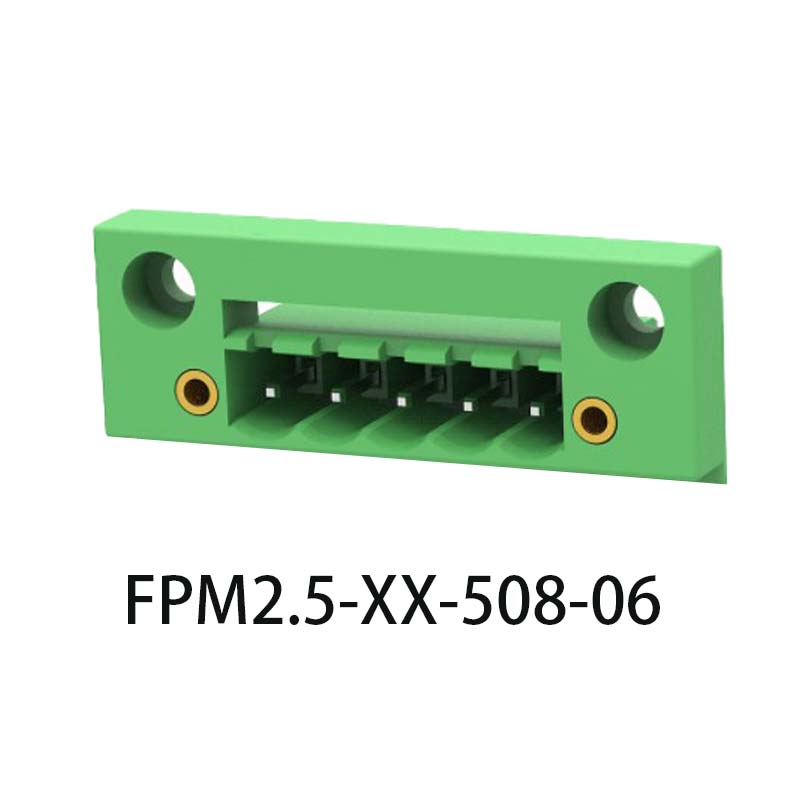

FPM2.5-XX-508-06 PCB spring terminal block

FPM2.5-XX-508-06 PCB spring terminal block

PCB spring terminal block Rated current: 15 A Rated voltage: 300 V Pitch:5.08mm
Poles

2
3
4
5
6
7

8
9
10
11
12

Products weight: Package quantity:

Details

Use Group	B	C	D
Rate Voltage [V]	300	-	300
Rated Current [A]	15	-	10
Wire Range [AWG]	/
Dielectric Voltage-Withstand	1.6KV

IEC
Overvoltage Category	III	III	II
Contamination Class	3	2	2
Rated Voltage [V]	320	320	630
Rated Current [A]	12	12	12
Impulse withstand voltage [KV]	4	4	4
Conductor cross section [mm²]	/

Material
Insulation Material	PA66
Flame relardant rating	UL94V-0
Conductor Material	Copper alloy
Plating of conductor surface	Sn plated

Other Data
Pitch/Poles [mm]/[P]	5.08/2-24
Stripping Length [mm]	/
Screw/Torque(Max)[N.m]	/
Operating temperature [℃]	-40~+105
Soldering temperature	250℃/5S
Pin dimensions [mm]	/
PCB Hole Diameter [mm]	/
